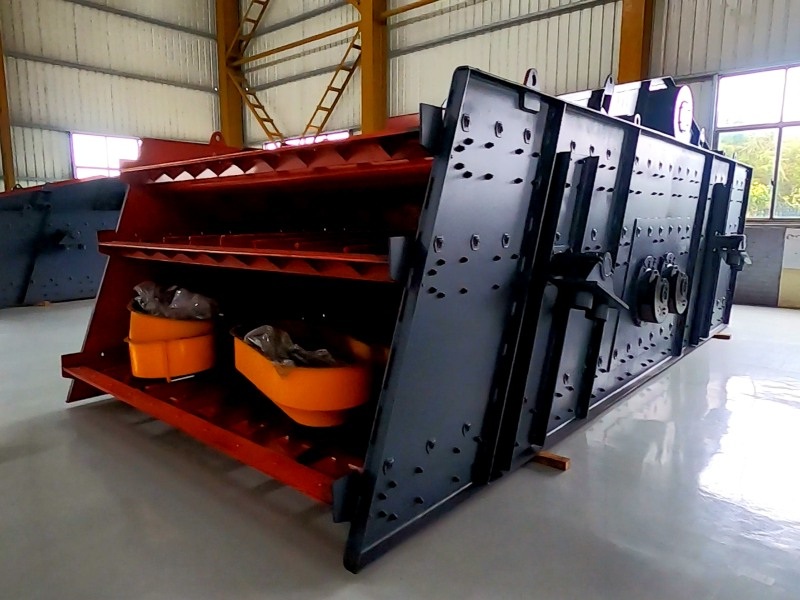

Round vibrating screen

product description

Introduction of circular vibrating screen:

Circular vibrating screen is a kind of circular vibration, multi-layer vibrating equipment, also referred to as "vibrating screen". The structure and principle of circular vibrating screen are: cylindrical eccentric shaft exciter and eccentric block to adjust the amplitude. It is composed of screen box, screen mesh, vibrator and damping spring, etc. The vibrator is installed on the side plate of the screen box, and driven by the motor through the V-belt to cause the eccentric block of the exciter to rotate at high speed, generating a large centrifugal inertial force , The screen box is excited to produce a circular motion with a certain amplitude. The material on the screen is continuously thrown by the impulse transmitted by the screen box on the inclined screen surface. When the material meets the screen surface, the particles smaller than the screen hole pass through the screen To achieve grading. The equipment is widely used in the classification of materials in various industries such as mining, building materials, transportation, energy, chemical industry, and water conservancy construction.

Features of round vibrating screen:

The vibrating screen equipment produced by Phoenix has: reliable structure, strong excitation force, high screening efficiency, low vibration noise, ruggedness, convenient maintenance, safe use, etc. and the following six characteristics:

(1) Large processing capacity and high screening efficiency.

(2) The vibrator adopts bearing thin oil lubrication and external block eccentric structure. It has the characteristics of large excitation force, low bearing load, low temperature and low noise.

(3) The whole vibrator is disassembled, easy to maintain and replace, and shorten the inspection cycle.

(4) The side plate of the screen machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the beam and the side plate adopts torsion shear high-strength bolt connection, no welding, and the beam is easy to replace.

(5) The screen machine uses rubber springs to reduce vibration. Compared with metal springs, it has the advantages of low noise, long service life, stable over-common vibration area, and small dynamic load on each supporting point of the screen machine.

(6) The flexible coupling is used to connect the motor and the exciter, which has the advantages of long service life and small impact on the motor.

Circular vibrating screen parameters:

型號 Model	層數 Number Of Layers	篩面尺寸(mm) Screen Size	最大給料尺寸(mm) Maximum Feeding Size	處理能力(t/h) Processing Power	振動頻率(Hz) Vibration Frequency	電機功率(kw) Motor Power	重量(kg) Weight	*外形尺寸(mmmmmm) Dimensions*
型號 Model	層數 Number Of Layers	篩面尺寸(mm) Screen Size	最大給料尺寸(mm) Maximum Feeding Size	處理能力(t/h) Processing Power	振動頻率(Hz) Vibration Frequency	電機功率(kw) Motor Power	重量(kg) Weight	*外形尺寸(mmmmmm) Dimensions*
F2YK-1230	2	1200*3000	100	7.5-80	16.2	5.5	2340	390019001000
F3YK-1230	3	1200*3000	100	7.5-80	16.2	7.5	3050	390019001500
F3YK-1548	3	1500*4800	200	30-200	13-16	15	6866	590621001900
F4YK-1548	4	1500*4800	200	30-250	13-16	18.5	7360	590621002150
F2YK-1854	2	1800*5400	250	50-300	16.2	18.5	6769	650925361810
F3YK-1854	3	1800*5400	250	50-300	16.2	22	8285	650925361910
F4YK-1854	4	1800*5400	250	50-300	16.2	30	9796	650925362250
F2YK-2160	2	2100*6000	250	100-400	16.2	30	9680	715026702120
F3YK-2160	3	2100*6000	250	100-400	16.2	30	10206	715026702270
F4YK-2160	4	2100*6000	250	100-400	16.2	37	11800	715026702650
F2YK-2460	2	2400*6000	300	150-600	16.2	30	80130	715029002120
F3YK-2460	3	2400*6000	300	150-600	16.2	30	12350	715029002350
F4YK-2460	4	2400*6000	300	150-600	16.2	37	13850	715029002680
F2YK-2475	2	2400*7500	300	200-650	16.2	22*2	12285	849131561613
F3YK-2475	3	2400*7500	300	200-650	16.2	22*2	14250	849131562163
F4YK-2475	4	2400*7500	300	200-650	16.2	22*2	15320	849131562713
F2YK-3072	2	3000*7200	350	200-800	16.2	22*2	14360	799137161613
F3YK-3072	3	3000*7200	350	200-800	16.2	30*2	15660	799137162163
F4YK-3072	4	3000*7200	350	200-800	16.2	30*2	16750	799137162713
F2YK-3680	2	3600*8000	350	300-1000	16.2	37*2	21560	849145561613
F3YK-3680	3	3600*8000	350	300-1000	16.2	37*2	23220	849145562163
F4YK-3680	4	3600*8000	350	300-1000	16.2	37*2	25630	849145562163
